Overview
Exceptional power and performance come standard
With a compact frame and maximum power, the RT-40 provides a productive alternative to walk-behind and stand-on mini skid-steer loaders. And with its reliability, serviceability and comfort it’s ideal for homeowners and contractors looking to accomplish a lot in small spaces.
Features
From Top to Bottom, We Go Above and Beyond
Power

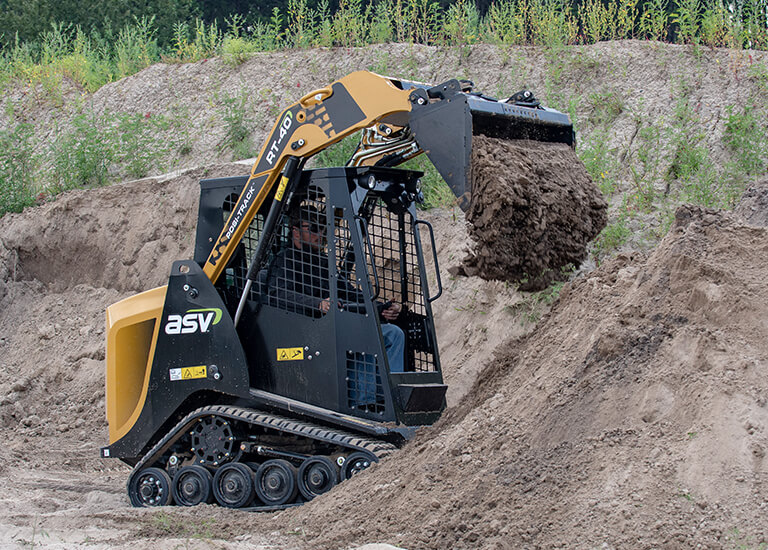

Built for performance, this 4’ wide powerhouse features a turbocharged YANMAR diesel powerplant. The 1.6-liter displacement engine produces 93.6 foot-pounds of torque while providing high tractive effort as a result of ASV’s Posi-Power system—this allows for exceptional pushing and digging power. The 4,005-pound RT-40 features a rated operating capacity of 931 pounds and a tipping load of 2,660 pounds.
Performance

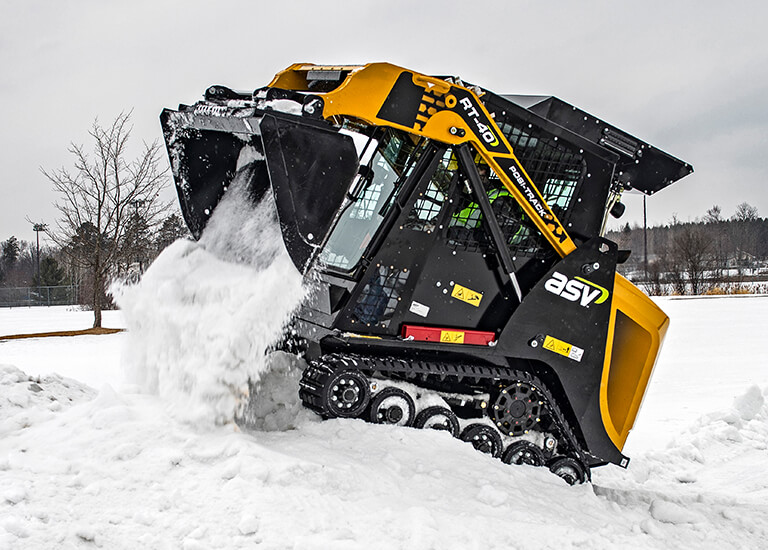

The ASV RT-40 compact track loader is engineered to deliver minimal ground pressure while topping out at 7.1MPH and reaching an impressive 8.4-foot lift height. The machine’s frame allows for a 10.8-inch ground clearance thoroughly outperforming any walk-behind or stand-on loader when it comes to traveling obstructed terrain.
Comfort

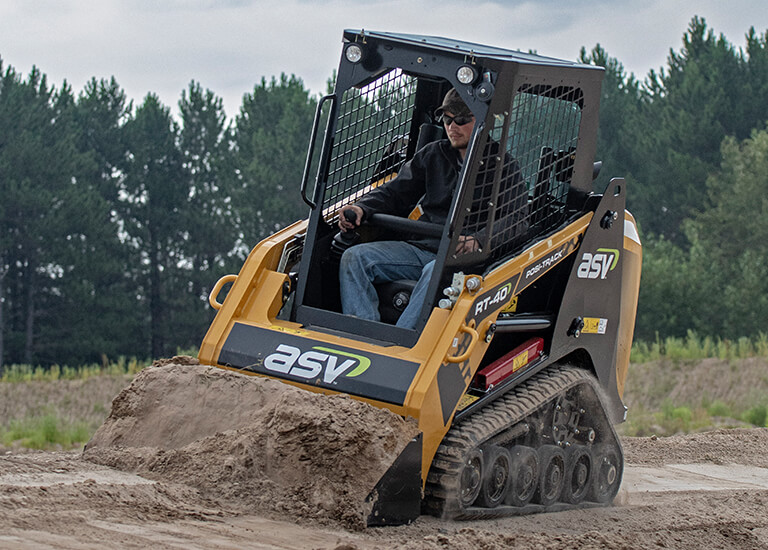

To give operators peace of mind, we designed the RT-40 with premium safety, comfort, and visibility features. The seated cab eliminates the fatigue from standing all day and offers protection from the elements. It’s built to provide ample headroom for taller operators and it’s pressurized for a clean, comfortable environment. Large windows also make it easy for operators to be aware of their surroundings.
Serviceability

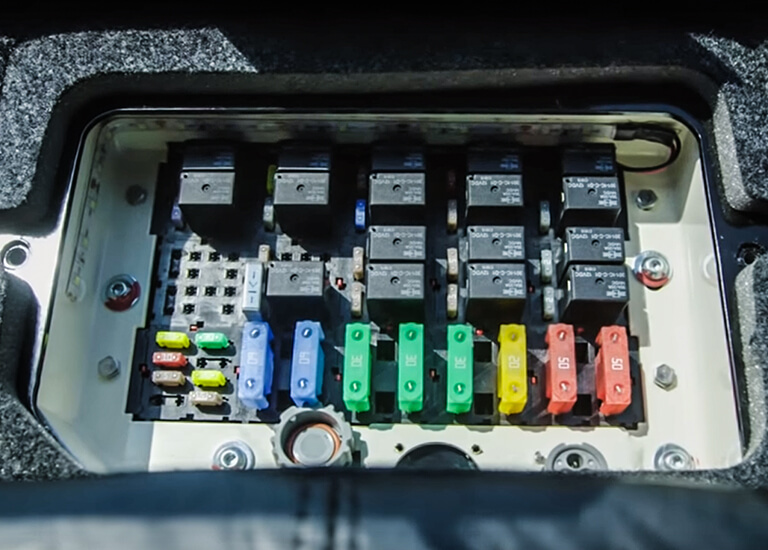

For maximum serviceability, the RT-40 is designed with a large rear-tilting hood to provide easy access to all maintenance points, including filters, oil and fuel tanks, reservoirs, hydraulic and water separator drains, and the battery. Servicing improvements within the cab include placing the fuse panel there for fast access, as well as making the seat removable with just two bolts. All of these features mean less downtime spent servicing the machine and more time operating it.
Standard Feature Comparison
Joystick Controls
Joystick Controls
ASV RT-40
Bobcat MT85
Bobcat T450
Mustang 1050RT
Torsion Axle Suspension
Torsion Axle Suspension
ASV RT-40
Bobcat MT85
Bobcat T450
Mustang 1050RT
Back-up Alarm
Back-up Alarm
ASV RT-40
Bobcat MT85
Bobcat T450
Mustang 1050RT
Turbocharged Engine
Turbocharged Engine
ASV RT-40
Bobcat MT85
Bobcat T450
Mustang 1050RT
Some features shown may not be included in the base configuration.
RT-40 Specifications
Operations
| Loader Arms | Radial | |
|---|---|---|
| Operating Weight | 4005 lbs | 1817 kg |
| Rated Operating Capacity @ 35% | 931 lbs | 422 kg |
| Rated Operating Capacity @ 50% | 1330 lbs | 603 kg |
| Ground Pressure | 3.3 psi | 22.7 kPa |
| Engine Power | 38.2 hp | 28.5 kW |
| Tipping Load | 2660 lbs | 1207 kg |
| Max. Travel Speed | 7.1 mph | 11.4 kph |
Engine
| Type | Diesel, 3-cylinder, turbo charged |
|---|---|
| Model | YANMAR 3TNV86CT |
| Engine Power | 38.2 hp | 28.5 kW |
|---|---|---|
| Displacement | 95.7 in3 | 1.6 L |
| Gross Horsepower | 38.2 hp | 28.5 kW |
| Torque Peak | 93.6 ft-lb | 126.9 Nm |
Drive Train
| Track Type | General purpose track constructed of rubber compound with embedded co-polymer cords and all-purpose treads. Single row of track drive lugs molded in. Turf track with smooth tread available as an option |
|---|---|
| Drive System | Two hydrostatic direct drive sprockets controlled by a single joystick |
| Track Drive Sprocket | Elevated with low friction, replaceable sprocket rollers |
| Undercarriage suspension | 2 independent torsion axles per undercarriage |
| Roller Wheels | 12 high-density polyurethane and rubber wheels per track. Wheels include sealed bearings |
| Track Width | 11 in | 279 mm |
|---|---|---|
| Length of Track on the Ground | 55 in | 1397 mm |
| Ground Contact area | 1210 in2 | .78 m2 |
| Roller Wheel Diameter | 10 in | 254 mm |
Auxiliary Hydraulic
| Controls | Variable flow via joystick button or continuous via console switch, mode selectable via dash-mounted switch |
|---|---|
| Couplers | Push to connect quick couplers mounted on manifold block. Pressure relief valve on block |
| Cooling System | High efficiency oil cooler beside engine radiator, not stacked |
| Standard Features | Manual quick-attach |
| Pump Capacity | 13.3 gpm | 50.4 lpm |
|---|---|---|
| System Pressure, Max | 3000 psi | 20684 kPa |
Electrical System
| Standard Features | Engine block heater |
|---|---|
| Wiring | Pre-wired for all factory-available accessories |
| Outlets | 1-12 V port inside operator station |
| Charging System | 80 Amp Alternator |
| Nominal Charge | 12V | 12V |
|---|---|---|
| Battery | 590 CCA | 590 CCA |
Operator Station
| Seat | Adjustable contour vinyl seat with built-in operator presence switch, lap bar and 2 in. ( 51 mm ) wide seat belt |
|---|---|
| Loader Control | Right-hand pilot hydraulic joystick controls loader lift/tilt, with intermittent control of auxiliary hydraulics |
| Drive Control | Left-hand pilot hydraulic joystick controls machine speed and direction |
| Engine speed | Hand-operated rotary throttle |
| Parking Brake | Actuated by dash-mounted switch |
| Multi-Functional Color 4.3 Inch Display/Indicator | Engine RPM, Engine Coolant Temperature, Engine Oil Pressure, Hydraulic Oil Temperature, Battery Voltage, Hour Meter, Fuel Level, Trip Meter, Engine Diagnostics, System Monitoring, Fault Logging and More |
| ROPS | Meets ISO 3471 |
| FOPS | Meets ISO 3449 |
| Operator Restraint Anchorage | Meets ISO 6683, CAL OSHA 1596 |
| Illumination | 2 - Fixed forward-facing LED lights, 1 - Adjustable rear-facing LED light, 1 - Interior light, 2 - Red LED tail lights |
| Convenience | 1 - 12 V power ports |
| Standard Features | Horn, backup alarm, rear window |
Service Capacity
| Fuel Tank | 13 gal | 49.2 L |
|---|---|---|
| Hydraulic Tank | 3.4 gal | 15.5 L |
| Engine Coolant | 1.8 gal | 6.8 L |
| Engine Oil (Including Filter) | 6 quarts | 5.7 L |
Dimensions
Dimensions
- 112.7 in.2866 mm
- 101 in.2565 mm
- 75.5 in.1920 mm
- 48.3 in.1225 mm
- 10.8 in.273 mm
